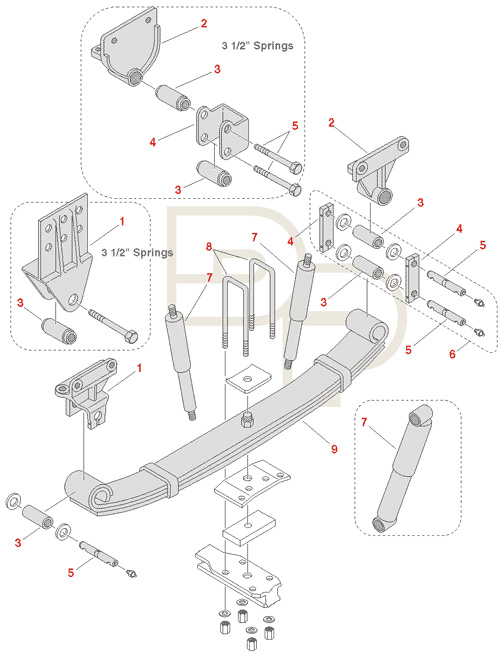

THOMAS - EF/ER FRONT SUSPENSION (3 1/2" wide springs)
| Key | Part # | Description | # Req. | OEM Reference |
|---|---|---|---|---|
| 1 | - | Hanger, Front | 2 | 62300180 |
| 2 | - | Hanger, Rear | 2 | 62300200, 62300181 |
| 3 | RB-190 | Bushing; 20mm ID x 46mm OD x 89mm Lg. | 6 | 61300221 |
| 4 | - | Side Bar | 4 | 62300418, 62300191 |
| 4 | - | Shackle | 2 | 62300224 |
| 5 | 334-990 | Bolt Assembly; 3/4"-16 x 6"Lg. | 8 | 61370672 |
| 6 | - | Shackle Kit | 2 | — |
| 7 | M65141 | Shock Absorber | 2 | — |
| 8 | SO | U-Bolt, Bent to Order | 4 | 61300217 |
| 9 | - | Spring Assembly | — | — |
